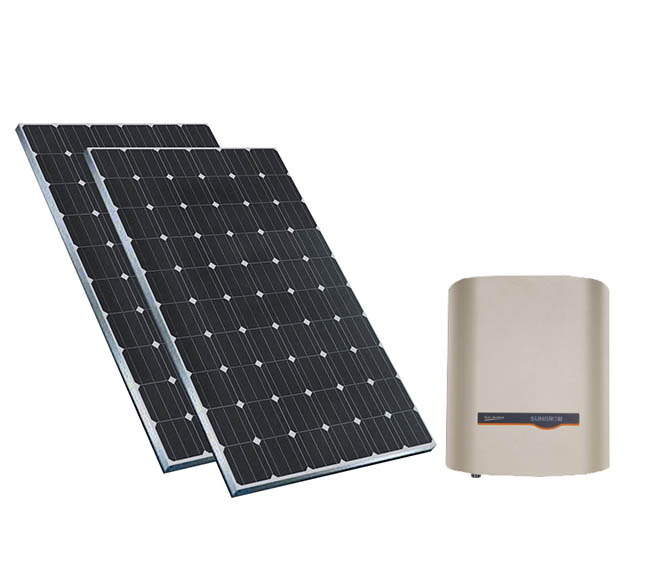

On-Grid Solar Home System 3KW
- On-Grid inverter 3Kw
- Solar panel 270 Wp 12 Unit
- Rangka solar panel
- DC Isolator
- Kabel DC dari solar panel ke inverter
- AC MCB
- Kabel AC dari inverter ke instalasi
Inverter Specification |
|||||||||||
Input Side Data |
|||||||||||
Max. PV voltage |
550V |
||||||||||
Startup voltage |
150V |
||||||||||
Nominal input voltage |
370V |
||||||||||
MPP voltage Range |
125…550V |
||||||||||
MPP voltage range for nominal power |
160…500V |
||||||||||
Max. PV input power (DC1/DC2) |
3200W (3200W/3200W) |
||||||||||
Max. PV input current (DC1/DC2) |
20A(10A/10A) |
||||||||||
Max. current for input connector |
10A |
||||||||||
Short circuit current of PV input (DC1/DC2) |
24A (12A/12A) |
||||||||||
No. of MPPTs |
2 |
||||||||||
Max number of PV string per MPPT (DC1/DC2) |
1/1 |
||||||||||
Output |
|||||||||||
Nominal AC output power |
3000W |
||||||||||
Max. AC output apparent power |
3150VA |
||||||||||
Max. AC output current |
15A |
||||||||||
Nominal AC voltage |
230Vac (Single phase) |
||||||||||
AC voltage range |
180…276Vac |
||||||||||
Nominal grid frequency |
50Hz |
||||||||||
Grid frequency range |
45…55Hz |
||||||||||
THD |
<3% (Nominal Power) |
||||||||||
DC current injection |
<0.5% |
||||||||||
Power Factor |
>0.99@default value at nominl power |
||||||||||
*(adjust. 0.8 over-excited – 0.8 under-excited) |
|||||||||||
Protection |
|||||||||||
Anti-islanding protection |
Yes |
||||||||||
DC reverse connection protection |
Yes |
||||||||||
AC short circuit protection |
Yes |
||||||||||
Leakage current protection |
Yes |
||||||||||
DC switch |
Optional |
||||||||||
DC fuse |
No |
||||||||||
System |
|||||||||||
Max. efficiency |
97.4% |
||||||||||
Isolation method |
Transformerless |
||||||||||
Ingress protection rating |
IP65 |
||||||||||
Night power consuption |
|||||||||||
Operating ambient temperature range |
-25°C…60°C (>45°C derating) |
||||||||||
Allowable relative humidity range |
0…100 % |
||||||||||
Max. working altitude |
4000m (operating with derating above 2000m) |
||||||||||
Cooling method |
Natural cooling |
||||||||||
Display |
Graphic LCD |
||||||||||
Communication |
RS485 (RJ45 connector), WiFi (Optional) |
||||||||||
DC terminals |
SUNCLIX |
||||||||||
AC connection type |
Plug and play connector (Wieland RST25I3S) |
||||||||||
Certification |
EN62109-1, EN62109-2, IEC61000-6-3, AS/NZS3100, AS4777.3 |
||||||||||
VDE-AR-N-4105 |
|||||||||||
Mechanical Data |
|||||||||||
Dimensions (W x H x D) |
420x555x179mm |
||||||||||
Mounting method |
Wall bracket |
||||||||||
Weight |
24 kg |
